Digitaalinen virtalähde Lumatek Utopia 630W/600W DE CMH/HPS

Nyt yksi ja ainoa virtalähde joka pyörittää mitä tahansa polttimoa !

220-240V Current Utopia 630W/600W Ballast designed to run CMH & HPS Lamps Lumatek continues to innovate by introducing to you, the next generation of HID digital ballast technology for the horticultural grow lighting sector.

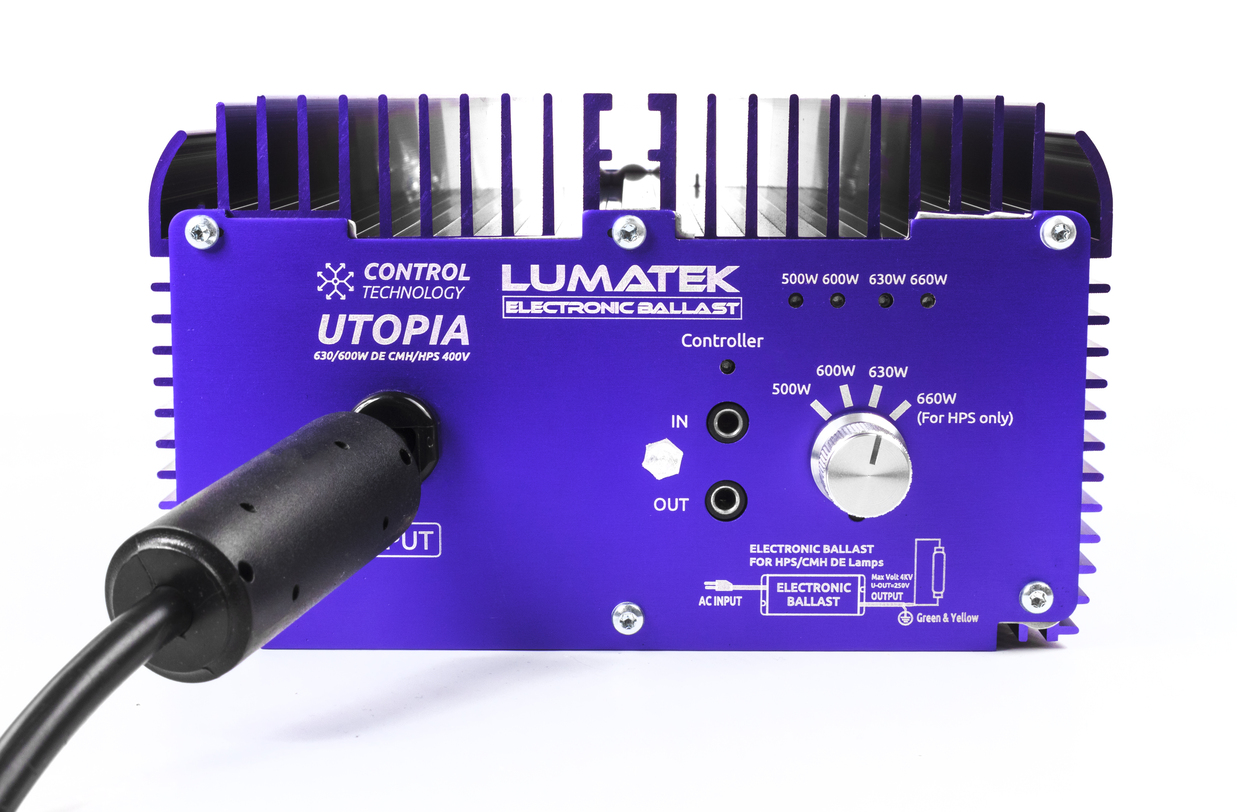

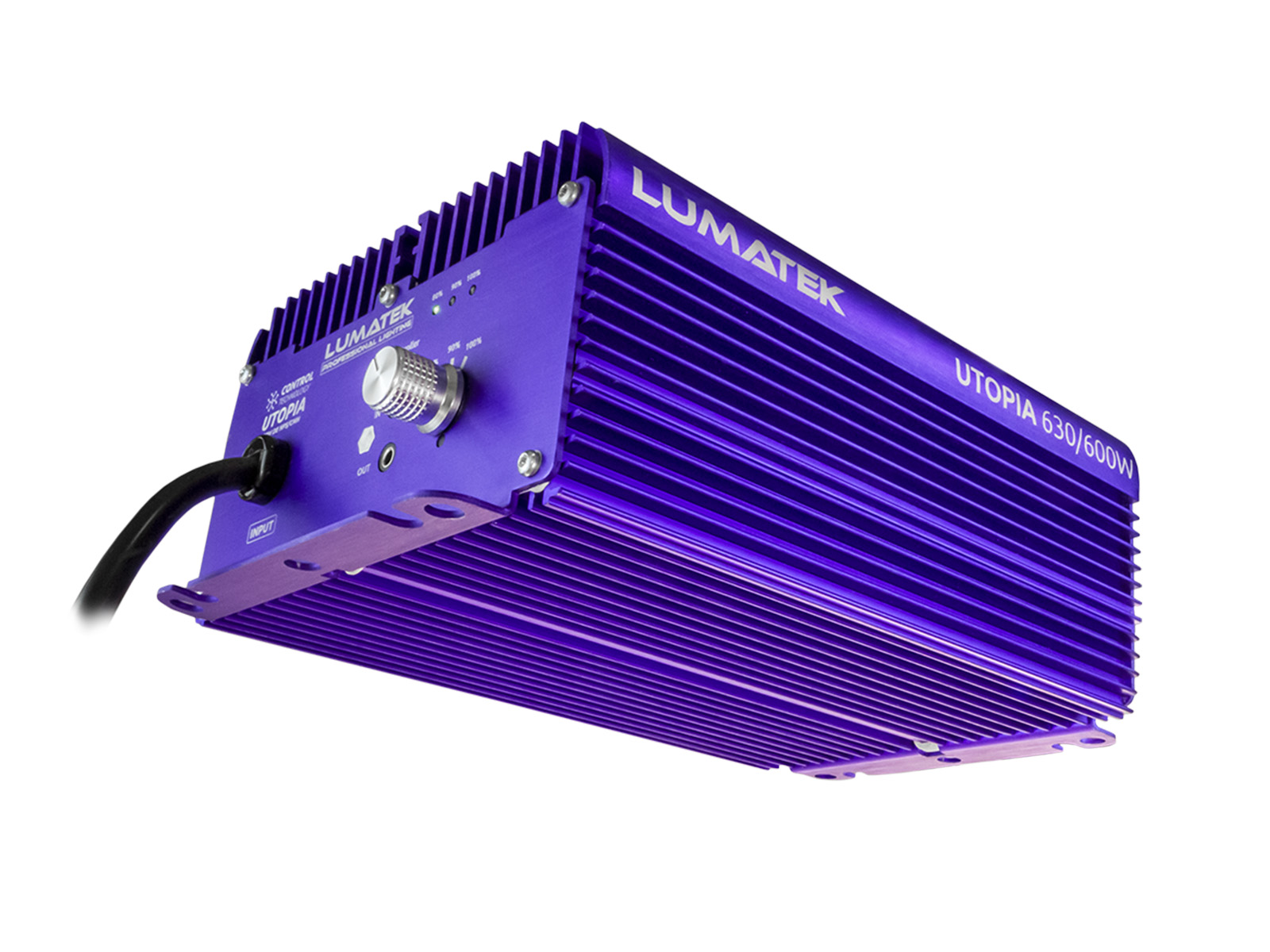

The all-new ? Lumatek Utopia 630/600 DE CMH/HPS ?controllable ballast uses the latest in microprocessor-controlled electronics, to power both high-voltage CMH and HPS grow lamps – which are the most efficient HID light source for horticulture farming – allowing for both possibilities without additional expense.

The Utopia 630W/600W ballast can drive both high or low voltage 600W HPS and 630W CMH DE grow lamps. Reducing the need for different ballasts/fixtures for each light source and thus reducing cost and maximising efficiency and flexibility to all growers.

The Utopia ballast is both manually dimmable and can be externally controlled using the Lumatek Control Panel for up to 400 fixtures per controller unit, with automated and temperature-controlled dimming and safety protection for even greater precision, assurance and control.

It features three manual power settings at 80%-90%-100% with externally-controlled light intensity from 80% – 110% in 1% increments using a Lumatek control panel. For safety this ballast uses full circuit protection including open/short circuit, over temperature, over/low voltage, end of lamp life/rectification and EMI suppression.

KEY SPECIFICATIONS

PRODUCT CODE: LUMBC007
INPUT VOLTAGE: 220-240V 50/60Hz
POWER CONSUMPTION (AT 100%): 660W
INPUT CURRENT: 2.7 – 3.0A
EFFICACY: 95%
LIGHT DISTRIBUTION: 140º
LAMPS: 630W CMH DE 240V & 600W HPS DE 400V
DIMMABLE: 80%-90%-100%
POWER FACTOR: >0.98
THD: >10%
EXTERNAL CONTROL: With Lumatek Digital Panel
DIMENSIONS: 116x238x95.8mm
WEIGHT: 3.35 Kg
CERTIFICATES: CE

KEY SPECIFICATIONS

PRODUCT CODE: LUMBC007
INPUT VOLTAGE: 220-240V 50/60Hz
POWER CONSUMPTION (AT 100%): 660W
INPUT CURRENT: 2.7 – 3.0A
EFFICACY: 95%
LIGHT DISTRIBUTION: 140º
LAMPS: 630W CMH DE 240V & 600W HPS DE 400V
DIMMABLE: 80%-90%-100%
POWER FACTOR: >0.98
THD: >10%
EXTERNAL CONTROL: With Lumatek Digital Panel
DIMENSIONS: 116x238x95.8mm
WEIGHT: 3.35 Kg
CERTIFICATES: CE

FEATURES

- High output and efficacy
- Powers two different technologies: CMH & HPS in 240V & 400V
- Designed for best performance with 600W HPS & 630W CMH Lamps
- Manually dimmable 80%-90%-100%
- Externally-controllable with Lumatek Digital Panel
- Appropriate Lamps and Reflectors sold separately

ITEMS INCLUDED:
1 x Lumatek 220-240V Utopia 630W/600W CMH/HPS Ballast with connecting cables
1 x Manual

DOCUMENTS AND RESOURCES:

? Manual, Spec Sheet, Certificates, Reports, Photos
