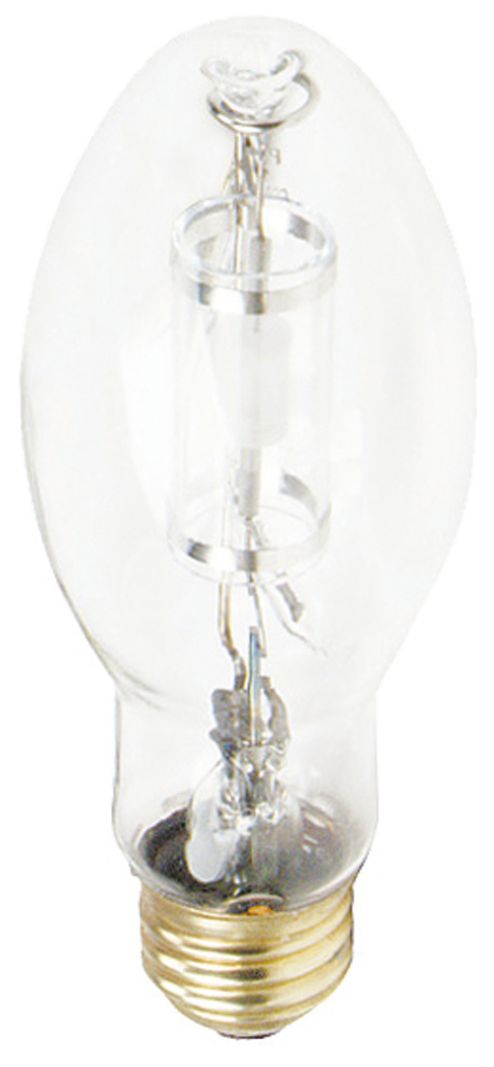

Keraaminen monimetallilamppu 150W Philips (E26)

Specifications

General Information

Cap-Base	E26  [ Single Contact Medium Screw]
Operating Position	Universal  [ Universal]
Main Application	General Lighting (G)
Life to 50% Failures (Min)	20000 h

ANSI Code HID	C142/O
Features	ALTO® + FadeBlock™
Footnotes HID 1	Exclusive to Philips Lighting Company.

Light Technical

Color Code	940  [ CCT of 4000K]
Luminous Flux (Rated) (Min)	11000 lm
Luminous Flux (Rated) (Nom)	12000 lm
Color Designation	Deluxe Cool White
Lumen Maintenance - 40% Life	75 %
Lumen Maintenance - 10% Life	87 %
Design Mean Lumens	9000 lm
Chromaticity Coordinate X (Max)	0.387
Chromaticity Coordinate X (Min)	0.369
Chromaticity Coordinate X (Nom)	0.378

Chromaticity Coordinate Y (Max)	0.372
Chromaticity Coordinate Y (Min)	0.360
Chromaticity Coordinate Y (Nom)	0.366
Correlated Color Temperature (Nom)	4000 K
Luminous Efficacy (Rated) (Min)	73 lm/W
Luminous Efficacy (rated) (Nom)	80 lm/W
Color Rendering Index (Min)	87
Color Rendering Index (Nom)	90

Operating and Electrical

Lamp Current (Nom)	1.8 A
Ignition Supply Voltage (Min)	235 V
Re-Ignition Time (Min) (Max)	12 min

Ignition Time (Max)	10 s
Voltage (Max)	105 V
Voltage (Min)	85 V
Voltage (Nom)	95 V

Mechanical and Housing

Bulb Finish	Clear (CL)
Cap-Base Information	Brass  [ Brass Cap]

Bulb Material

Hard Glass

Approval and Application

Picogram Per Lumen Hour	63.3 pg/lm.h
Mercury (Hg) Content (Max)	11.4 mg

UV

Pet (Niosh) (Nom)	304 h.klx
Damage Factor D/fc (Nom)	0.281

Luminaire Design Requirements

Bulb Temperature (Max)	400 °C
Cap-Base Temperature (Max)	190 °C

Product Data

Order product name	MHC150/U/MP/4K ALTO 12PK
EAN/UPC - Product	046677377243
Order code	377242
Numerator - Quantity Per Pack	1

Numerator - Packs per outer box	12
Material Nr. (12NC)	928601171701
Net Weight (Piece)	0.070 kg
